Description

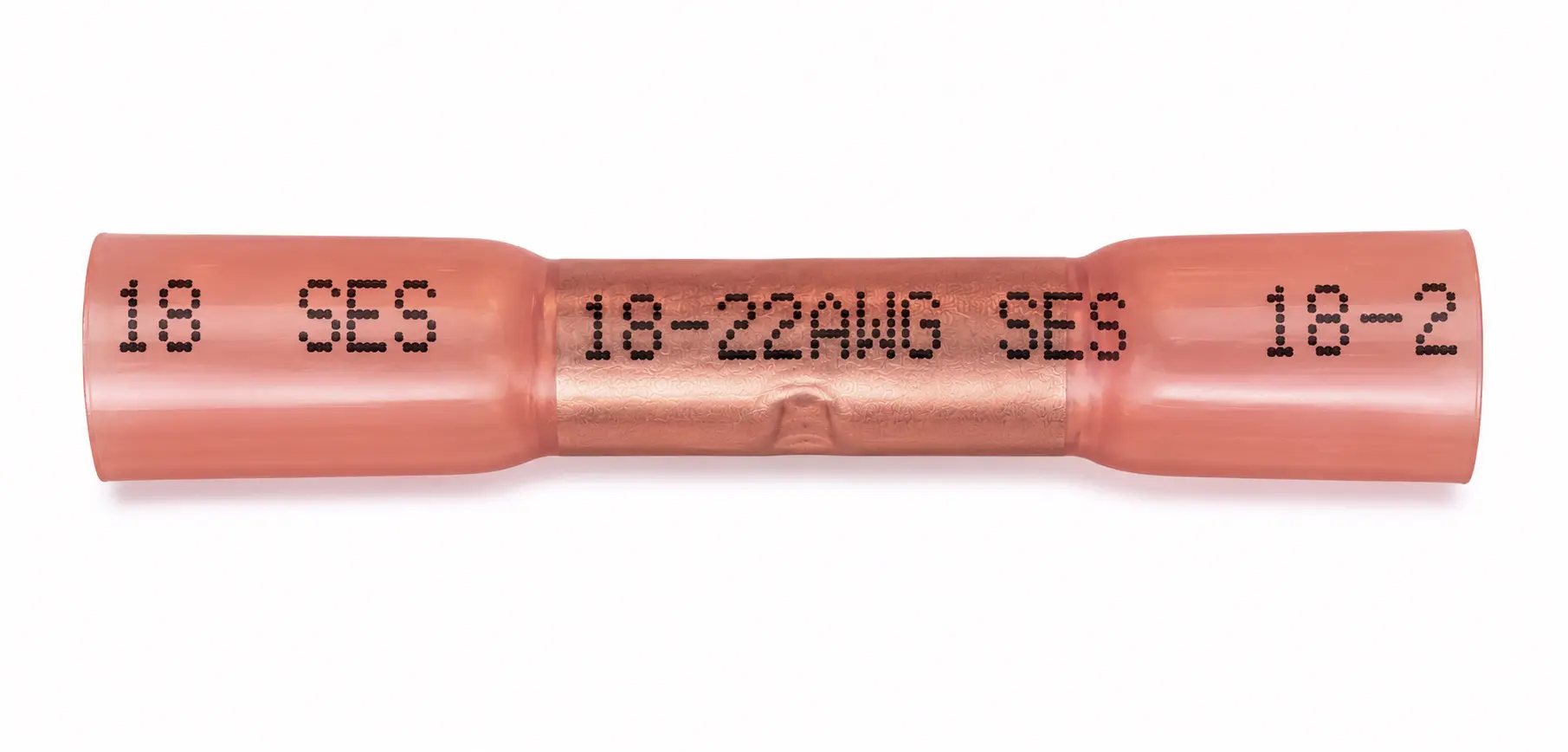

SHRINK BUTT CONNECTOR SAA2218 3M 22-18 AWG HEAT SHRINK BUTT CONNECTOR, MADE IN USA – SAA2218
HEAT SHRINK CONNECTOR
Material: Multiple wall polyolefin tubing with meltable, integral inner wall
Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227
Physical: Temperature Rating: -55C to 110C
Tensile Strength: 2200 PSI
Longitudinal Change: +1, – 10%
Recovery Temp 135C
Electrical: Dielectric Strength: 900 Volts/Mil
UL Voltage Rating: 600 Volts
Chemical: Corrosion Resistance: Non-Corrosive
Fungus Resistance: Non-Nutrient
Water Absorption: <0.1%
Rating: 105C 600V maximum building wire 1000V maximum in signs and fixtures
Need help with an order? Contact us and we can help!
3M 22-18 AWG HEAT SHRINK BUTT CONNECTOR, MADE IN USA – SAA2218
$0.43Original price was: $0.43.$0.40Current price is: $0.40.EACH – MINIMUM ORDER QTY – 25
DISCOUNTS (25-99 $.40 ea, 100-499 $.38 ea, 500-999 $.36, 1000+ $.34)
Description
SHRINK BUTT CONNECTOR SAA2218 3M 22-18 AWG HEAT SHRINK BUTT CONNECTOR, MADE IN USA – SAA2218
HEAT SHRINK CONNECTOR
Material: Multiple wall polyolefin tubing with meltable, integral inner wall
Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227
Physical: Temperature Rating: -55C to 110C
Tensile Strength: 2200 PSI
Longitudinal Change: +1, – 10%
Recovery Temp 135C
Electrical: Dielectric Strength: 900 Volts/Mil
UL Voltage Rating: 600 Volts
Chemical: Corrosion Resistance: Non-Corrosive
Fungus Resistance: Non-Nutrient
Water Absorption: <0.1%
Rating: 105C 600V maximum building wire 1000V maximum in signs and fixtures
Need help with an order? Contact us and we can help!
