Description

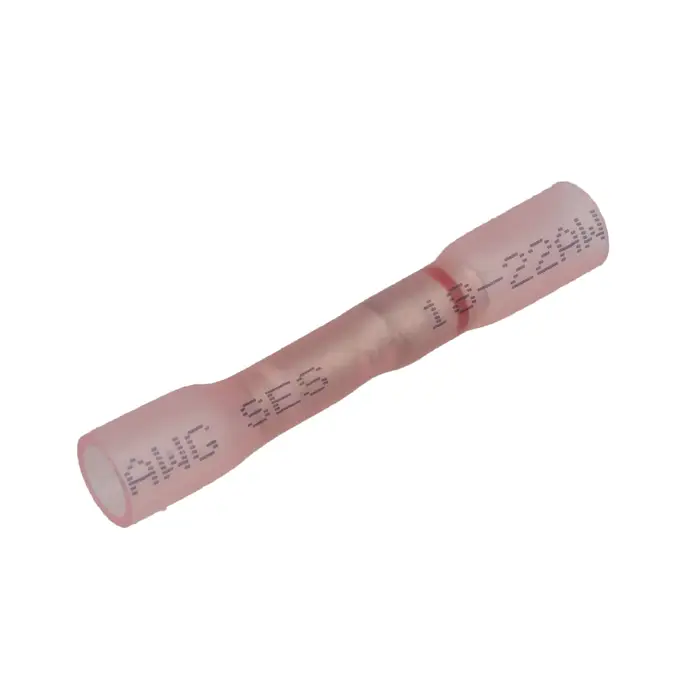

3M 22-18 TO 16-14 HEAT SHRINK CRIMP SOLDER STEP-DOWN BUTT CONNECTOR – MADE IN USA – SCSAA1820
HEAT SHRINK CRIMP SOLDER STEP-DOWN CONNECTOR
Material: Multiple wall polyolefin tubing with meltable, integral inner wall with solder
Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227
Physical: Temperature Rating: -55?C to 110?C
Tensile Strength: 2200 PSI
Longitudinal Change: +1, – 10%
Recovery Temp 135 C
Electrical: Dielectric Strength: 900 Volts/Mil
UL Voltage Rating: 600 Volts
Chemical: Corrosion Resistance: Non-Corrosive
Fungus Resistance: Non-Nutrient
Water Absorption: <0.1%
Rating: 105 C 600V maximum building wire 1000V maximum in signs and fixtures
3M 22-18 TO 16-14 HEAT SHRINK CRIMP SOLDER STEP-DOWN BUTT CONNECTOR – MADE IN USA – SCSAA1820
$1.88Original price was: $1.88.$0.99Current price is: $0.99.EACH – MINIMUM ORDER QTY – 25
DISCOUNTS (25-99 $.99 ea, 100-249 $.97 ea, 250-499 $.95 ea, 500-999 $.93, 1000+ $.92)
Description
3M 22-18 TO 16-14 HEAT SHRINK CRIMP SOLDER STEP-DOWN BUTT CONNECTOR – MADE IN USA – SCSAA1820
HEAT SHRINK CRIMP SOLDER STEP-DOWN CONNECTOR
Material: Multiple wall polyolefin tubing with meltable, integral inner wall with solder
Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227
Physical: Temperature Rating: -55?C to 110?C
Tensile Strength: 2200 PSI
Longitudinal Change: +1, – 10%
Recovery Temp 135 C
Electrical: Dielectric Strength: 900 Volts/Mil
UL Voltage Rating: 600 Volts
Chemical: Corrosion Resistance: Non-Corrosive
Fungus Resistance: Non-Nutrient
Water Absorption: <0.1%
Rating: 105 C 600V maximum building wire 1000V maximum in signs and fixtures
