3M Heat Shrink Ring
Sale!

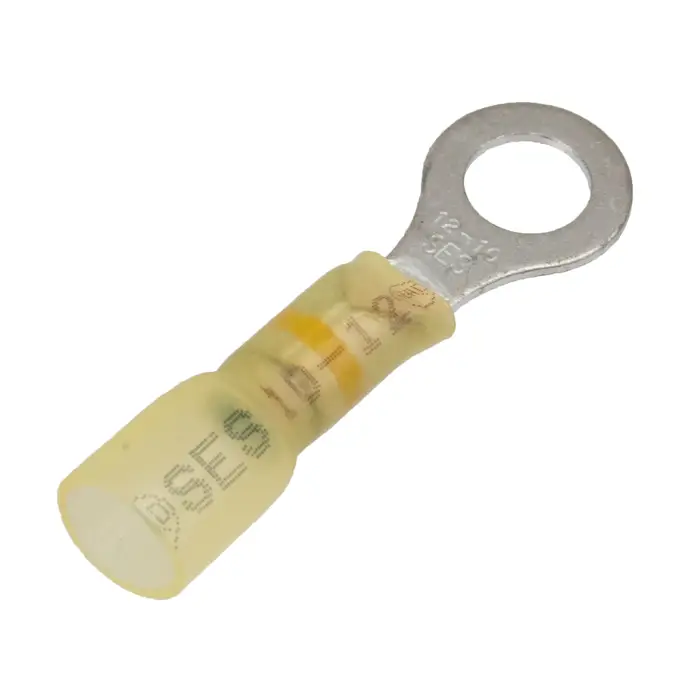

3M SCSC23056LF Heat Shrink Crimp Solder Ring Terminal – 12-10 AWG, 5/16″ Stud, Made in USA

Original price was: $1.100.Current price is: $0.780.

EACH – MINIMUM ORDER QTY – 25

DISCOUNTS (25-99 $.78 ea, 100-249 $.76 ea, 250-499 $.75 ea, 500-999 $.74, 1000+ $.73)

  • Best Shrink Connector You Can Buy!!!
  • Made in USA
  • Heat Shrink Insulated
  • Water Proof Seal
  • 12-10 Gauge 5/16″ Ring Terminal
  • Crimp Heat
SKU: SCSC23056LF Categories: , , , , ,

Description

3M SCSC23056LF Heat Shrink Crimp Solder Ring Terminal – 12-10 AWG, 5/16″ Stud, Made in USA

Material: Multiple wall polyolefin tubing with meltable, integral inner wall with solder

Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227

Physical: Temperature Rating: -55?C to 110?C

Tensile Strength: 2200 PSI

Longitudinal Change: +1, – 10%

Recovery Temp 135 C

Electrical: Dielectric Strength: 900 Volts/Mil

UL Voltage Rating: 600 Volts

Chemical: Corrosion Resistance: Non-Corrosive

Fungus Resistance: Non-Nutrient

Water Absorption: <0.1%

Rating: 105 C  600V maximum building wire 1000V maximum in signs and fixtures

View more USA-made heat shrink terminals here.

Download the 3M Heat Shrink Tubing Product Selection Guide (UL File E‑157227)

3M SCSC23056LF Heat Shrink Crimp Solder Ring Terminal – 12-10 AWG, 5/16″ Stud, Made in USA
