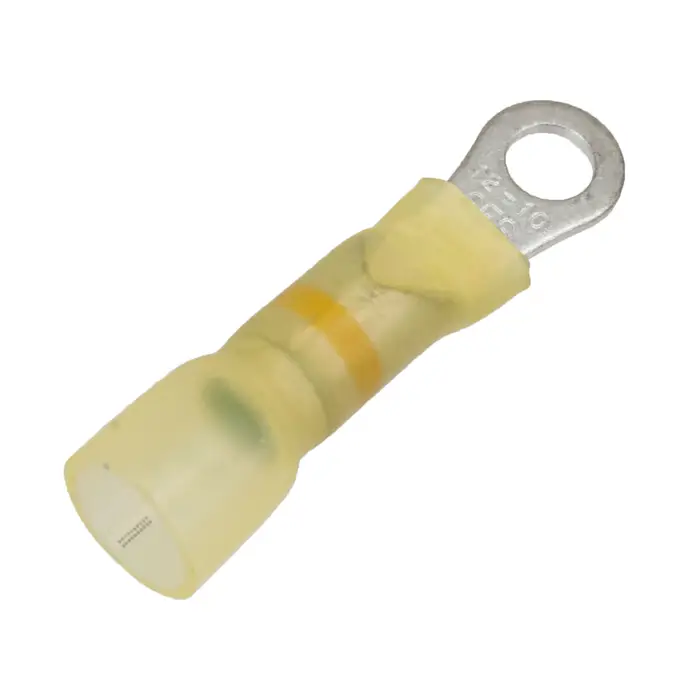

Name: 3M SCSC231010 Heat Shrink Crimp Solder Ring Terminal - 12-10 AWG, #10 Stud, Made in USA
SKU: SCSC231010
Availability: InStock

3M SCSC231010 Heat Shrink Crimp Solder Ring Terminal – 12-10 AWG, #10 Stud, Made in USA

EACH – MINIMUM ORDER QTY – 25

DISCOUNTS (25-99 $.97 ea, 100-249 $.95 ea, 250-499 $.93 ea, 500-999 $.90, 1000+ $.87)

Description

3M SCSC231010 Heat Shrink Crimp Solder Ring Terminal – 12-10 AWG, #10 Stud, Made in USA

Material: Multiple wall polyolefin tubing with meltable, integral inner wall with solder

Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227

Physical: Temperature Rating: -55?C to 110?C

Tensile Strength: 2200 PSI

Longitudinal Change: +1, – 10%

Recovery Temp 135 C

Electrical: Dielectric Strength: 900 Volts/Mil

UL Voltage Rating: 600 Volts

Chemical: Corrosion Resistance: Non-Corrosive

Fungus Resistance: Non-Nutrient

Water Absorption: <0.1%

Rating: 105 C 600V maximum building wire 1000V maximum in signs and fixtures

View more USA-made heat shrink terminals here.

Download the 3M Heat Shrink Tubing Product Selection Guide (UL File E‑157227)
