Description

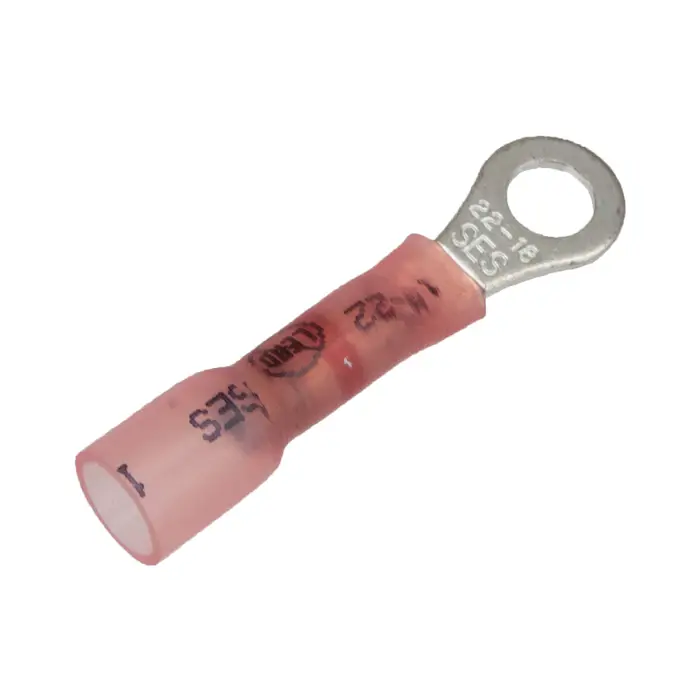

3M 22-18 AWG HEAT SHRINK CRIMP SOLDER #10 RING TERMINAL – MADE IN USA – SCSA22110
HEAT SHRINK CRIMP LEAD FREE SOLDER #10 RING TERMINAL
Material: Multiple wall polyolefin tubing with meltable, integral inner wall with solder
Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227
Physical: Temperature Rating: -55?C to 110?C
Tensile Strength: 2200 PSI
Longitudinal Change: +1, – 10%
Recovery Temp 135 C
Electrical: Dielectric Strength: 900 Volts/Mil
UL Voltage Rating: 600 Volts
Chemical: Corrosion Resistance: Non-Corrosive
Fungus Resistance: Non-Nutrient
Water Absorption: <0.1%
Rating: 105 C 600V maximum building wire 1000V maximum in signs and fixtures
3M 22-18 AWG HEAT SHRINK CRIMP SOLDER #10 RING TERMINAL – MADE IN USA – SCSA22110
$0.92Original price was: $0.92.$0.54Current price is: $0.54.EACH – MINIMUM ORDER QTY – 25
DISCOUNTS (25-99 $.54 ea, 100-249 $.52 ea, 250-499 $.51 ea, 500-999 $.50, 1000+ $.49)
Description
3M 22-18 AWG HEAT SHRINK CRIMP SOLDER #10 RING TERMINAL – MADE IN USA – SCSA22110
HEAT SHRINK CRIMP LEAD FREE SOLDER #10 RING TERMINAL
Material: Multiple wall polyolefin tubing with meltable, integral inner wall with solder
Applicable Specifications: MIL-I-23053/4, Class 1; AMS 3634; UL File E-157227
Physical: Temperature Rating: -55?C to 110?C
Tensile Strength: 2200 PSI
Longitudinal Change: +1, – 10%
Recovery Temp 135 C
Electrical: Dielectric Strength: 900 Volts/Mil
UL Voltage Rating: 600 Volts
Chemical: Corrosion Resistance: Non-Corrosive
Fungus Resistance: Non-Nutrient
Water Absorption: <0.1%
Rating: 105 C 600V maximum building wire 1000V maximum in signs and fixtures
